STAR DRIVE KINGLAG
Designed with the builder in mind and engineered to deliver true performance on the jobsite, the KINGLAG Star Drive Screw provides strength, speed, and versatility across a wide range of structural applications. Commonly used for fastening ledger boards, LVLs, decks, and general framing connections, this screw combines installation efficiency with long-term reliability, making it a trusted alternative to traditional lag bolts. See the diagram below for the features that give KINGLAG screws their superior performance.

Head Ribs
Cuts through wood fibers for countersinking.

Exterior Coating
1000 Hr. Salt Spray Test Rating. Perfect for extreme exterior environments and pressure treated lumber.

Cutting Tip
Eliminates the need for predrilling.


Heat Treated Steel
45-degree bend angle tested for structural applications.

Milling Threads
Reduces Splitting.

Threads
Aggressive threads for fast drilling.
STAR DRIVE KINGLAG
Our Star Drive KINGLAG Screws are designed for maximum strength and reliability. With their star-shaped drive, they provide superior grip, reduced cam-out, and easy installation. Perfect for heavy-duty fastening projects, these screws ensure durability and long-term performance.

Head Ribs
Cuts through wood fibers for countersinking.

Exterior Coating
1000 Hr. Salt Spray rated

Cutting Tip
Eliminates the need for predrilling.


Heat Treated Steel
45° bend tested for strength.

Milling threads
Reduces Splitting.

Thread
Aggressive threads for fast drilling.

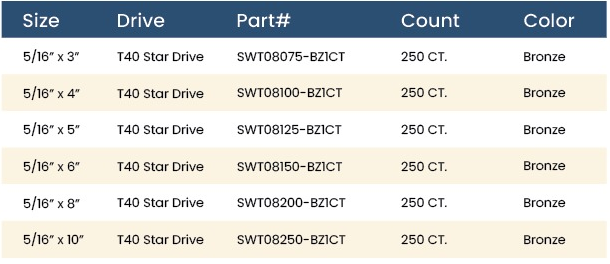

Sizes Available
Size
Drive
Part#
Count
Color
5/16* x 3″
T40 Star Drive
SWT08075-BZICT
250 CT.
Bronze
5/16* x 4″
T40 Star Drive
SWT08100-BZICT
250 CT.
Bronze
5/16* x 5″
T40 Star Drive
SWT08125-BZICT
250 CT.
Bronze
5/16* x 6″
T40 Star Drive
SWT08150-BZICT
250 CT.
Bronze
5/16* x 8″
T40 Star Drive
SWT08200-BZICT
250 CT.
Bronze
5/16* x 10″
T40 Star Drive
SWT08250-BZICT
250 CT.
Bronze
